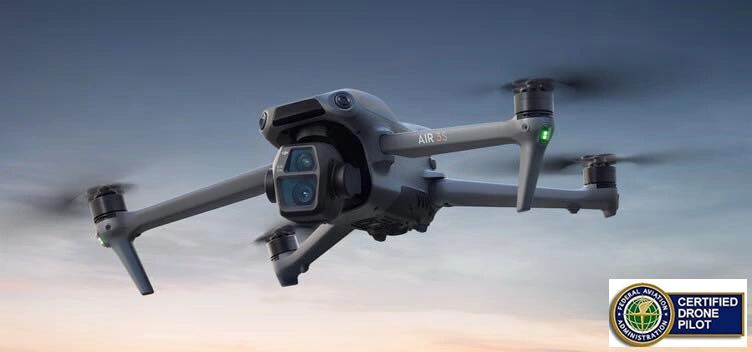

Flying the DJI Air3S

1. Prepare the aircraft: Remove the gimbal protector and unfold the aircraft’s arms.
2. Attach the propellers:
   1. Propellers come in A and B types and must not be reversed.
   2. Attach propellers A (with grey circle markings) to motors with grey markings.
   3. Attach propellers B (without markings) to motors without markings.
   4. Hold the motor, press the propeller down, and rotate in the direction marked on the propeller until it locks in place.
   5. Unfold the propeller blades.

1. Prepare for flight:

2. Fly in an open, unobstructed space.
3. Ensure the propellers and battery are securely installed.
4. Place the aircraft on level ground with the rear facing you.

1. Set up the app and settings:

   1. Set the flight mode switch to Normal mode and launch the DJI Fly app.
   2. Open "System Settings" and tap "Safety":
   3. Set the RTH height higher than the tallest nearby object.
   4. Set the Obstacle Avoidance Action to "Bypass" or "Brake".
   5. Ensure the GNSS status icon is white, and the DJI Fly app issues the voice prompt: "Home Point Updated."
   6. Insert a microSD card into the slot if needed. The aircraft has 42 GB of built-in storage and supports microSD card expansion.
   7.


Auto Takeoff and Landing:

1. Tap the Takeoff icon on the left side of the app and press and hold the prompt icon to enable Auto Takeoff.
2. To land automatically, tap the Landing icon and press and hold the prompt.

Manual Takeoff and Landing:

1. Push the left and right sticks of the remote controller inward or outward simultaneously to start the motors.
2. Release both sticks once the motors are spinning, then gently push the left control stick up to take off manually.
3. To land manually, pull the left stick down and continue holding it until the motors stop.

Aircraft controls:

1. Use the left stick
   1. Push up or down to ascend or descend.
   2. Push left or right to rotate the aircraft.
2. Use the right stick:
   1. Push up or down to fly forward or backward.
   2. Push left or right to move horizontally.



Trigger Smart RTH:

1. Tap the RTH icon in the app and hold down the confirmation pop-up to initiate RTH.
2. The aircraft will return to the last recorded home point and land.

Remote controller RTH:

Press and hold the RTH button on the remote controller to trigger Smart RTH.

After flight:

1. Fold the aircraft arms.
2. Attach the gimbal protector.
3. Store the aircraft and all accessories properly.
